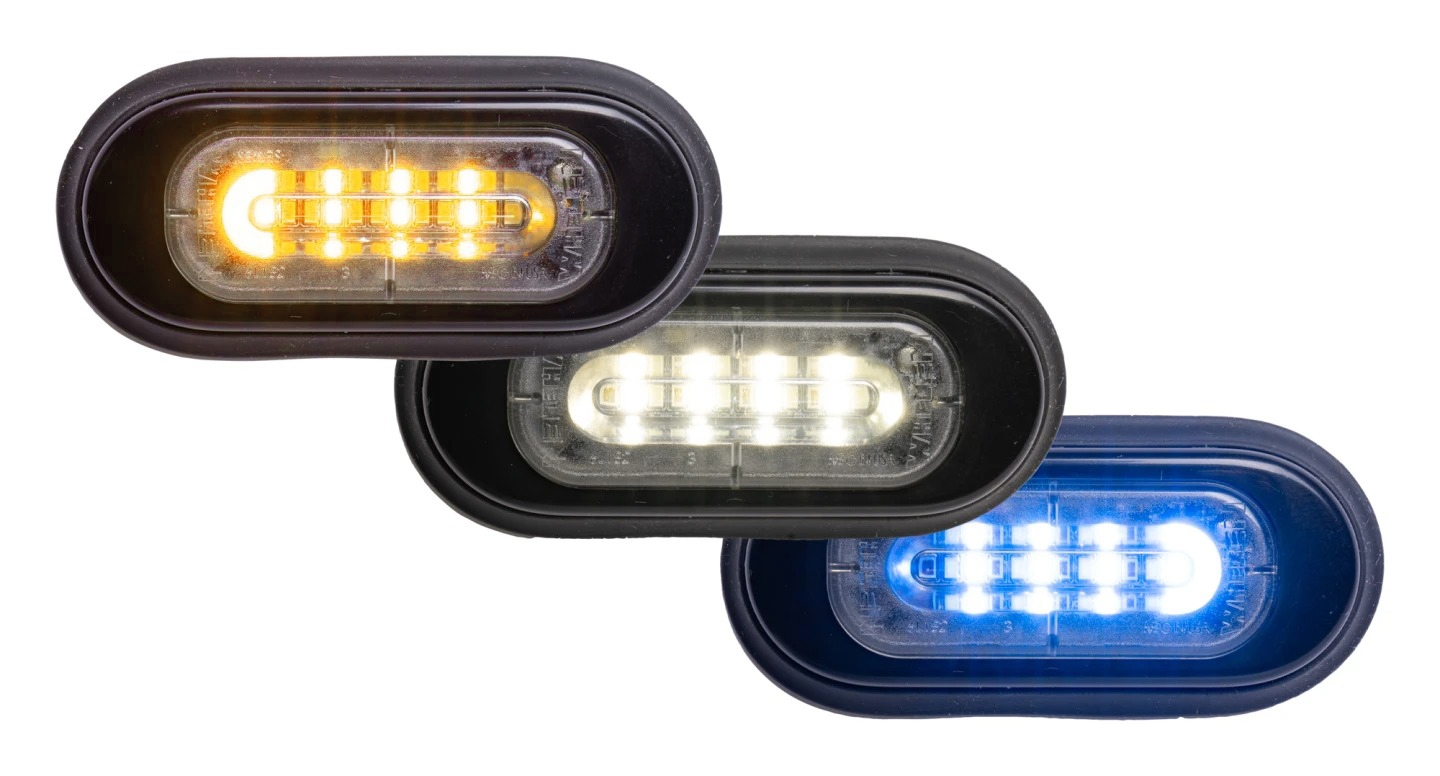

Whelen® TRIO ION™ Mini T-Series™ Linear Super-LED®, Blue/Amber/White

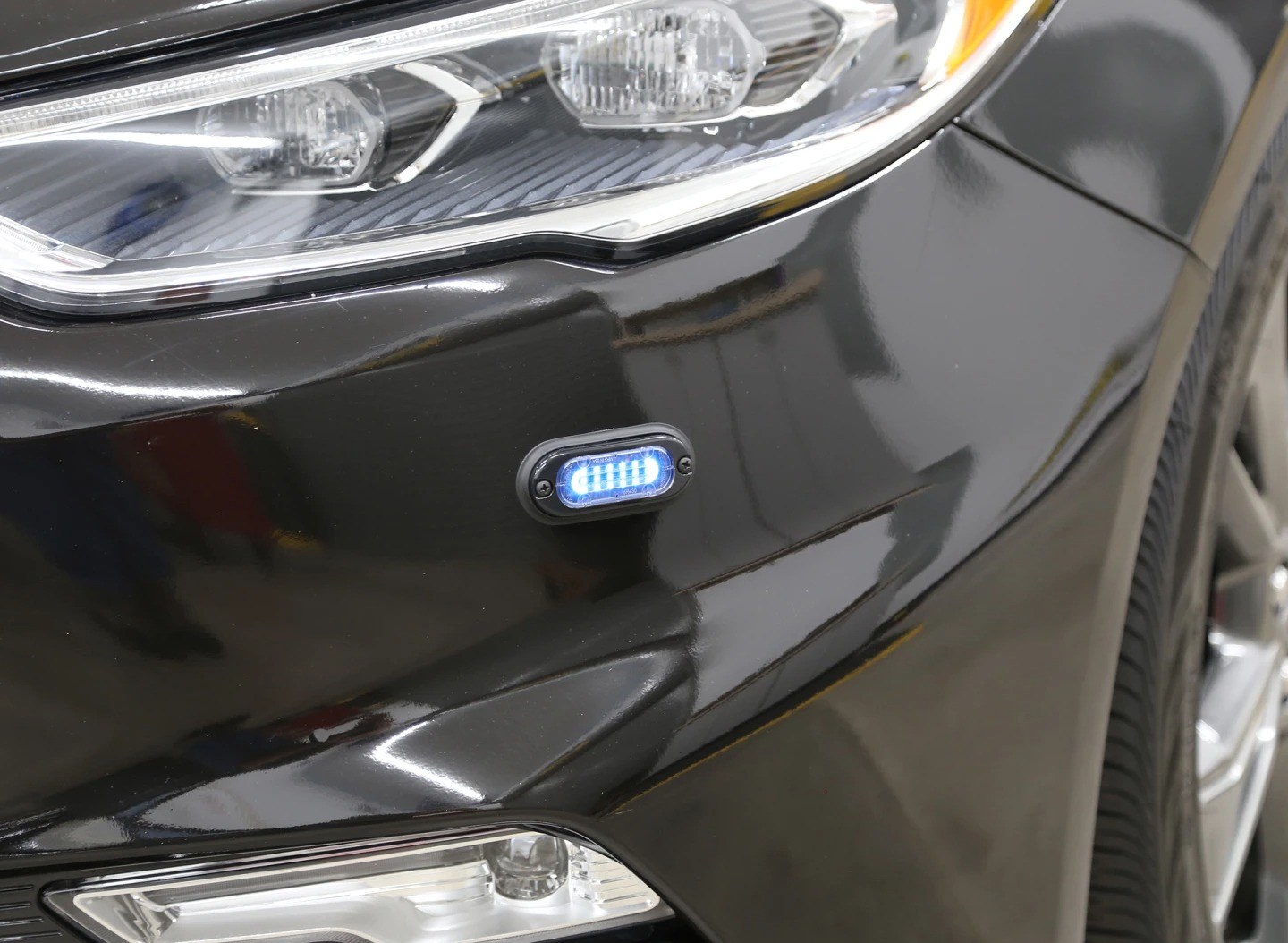

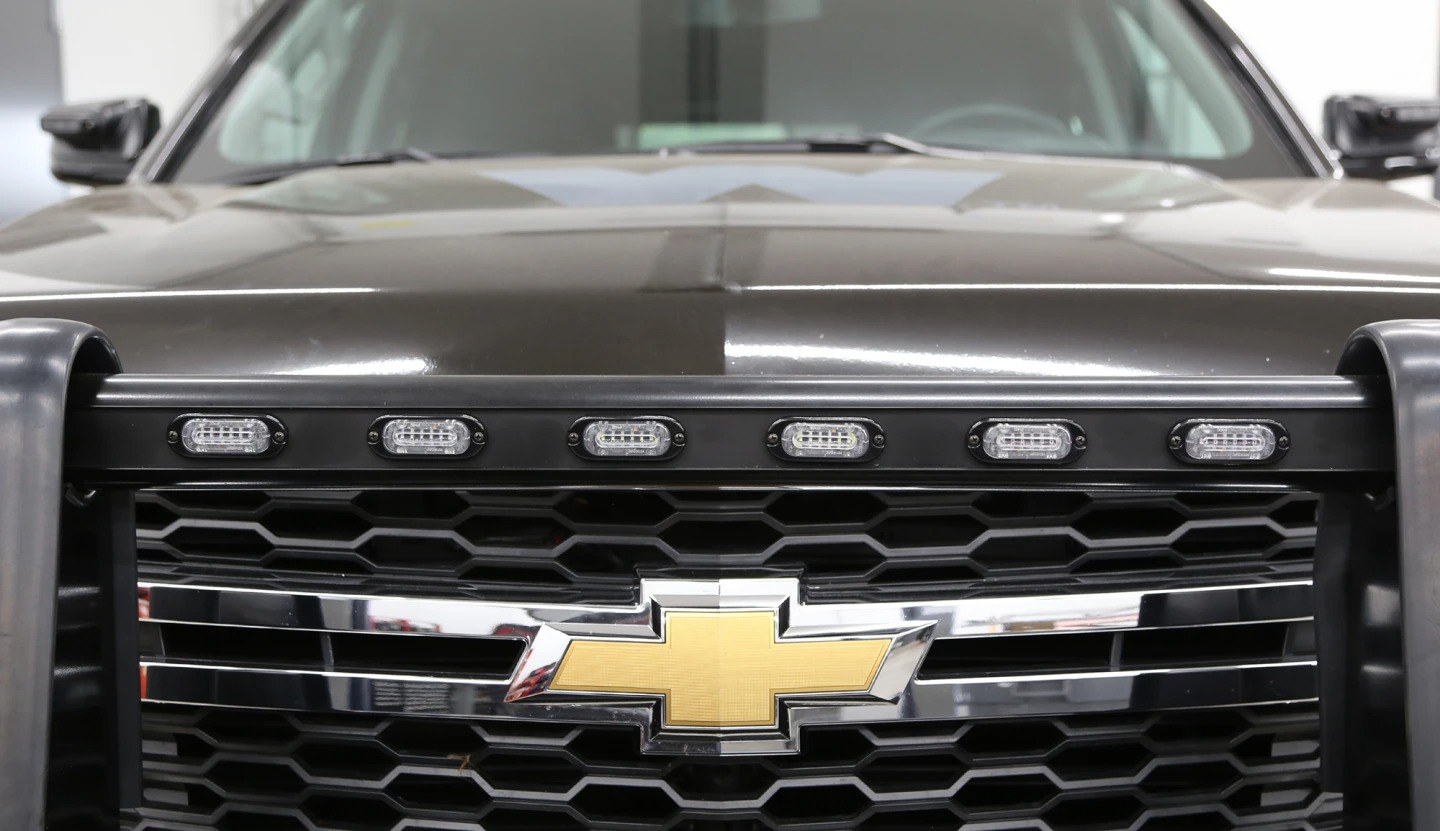

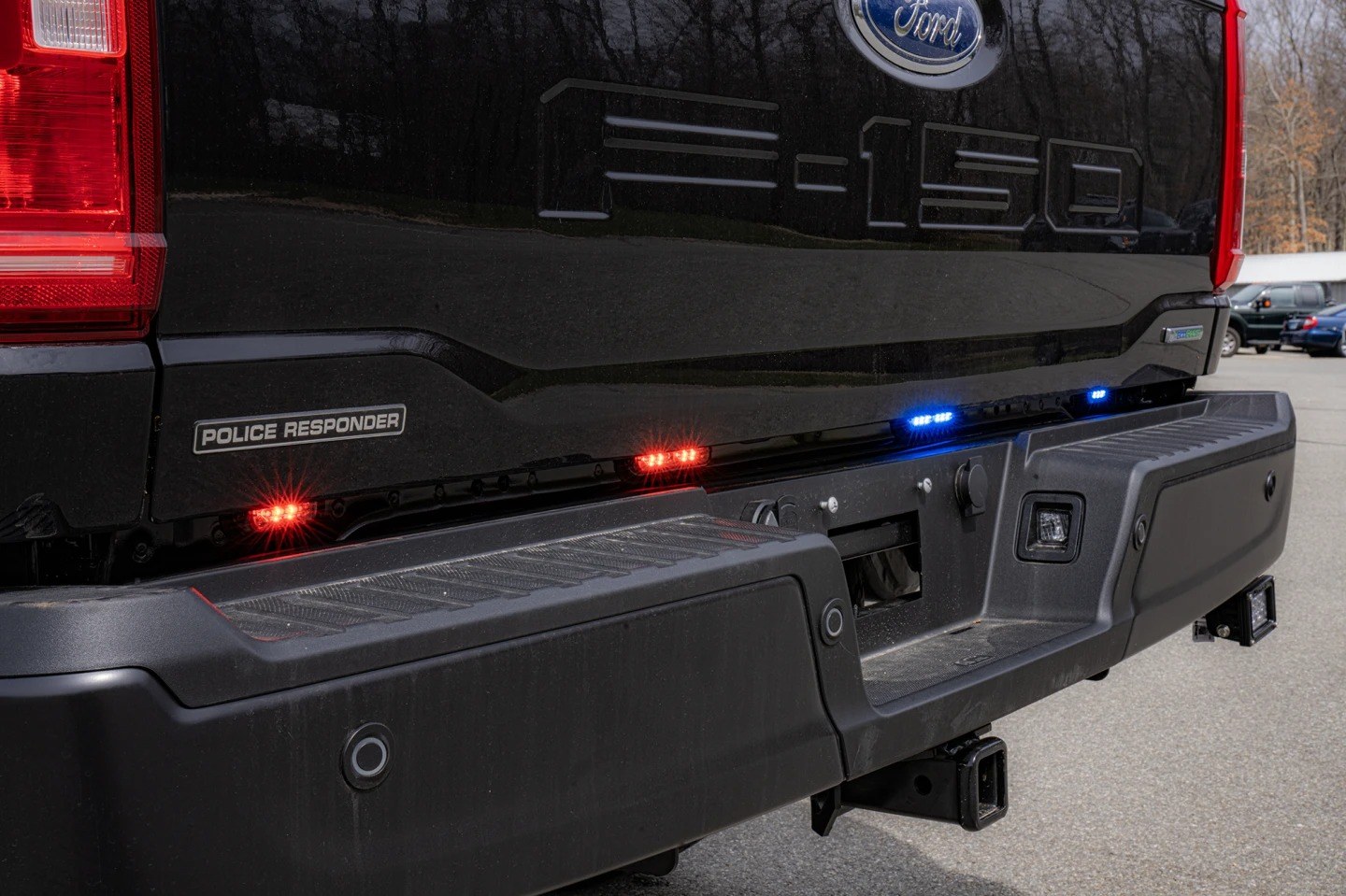

The TRIO ION Mini T-Series extends the power and versatility of Whelen’s ION Mini line with full TRIO capability—independent control over three colors in the smallest TRIO-capable housing to date. Delivering high-performance warning and illumination output in an ultra-compact footprint, this lighthead features a low-profile thickness of only 15.2 mm, making it ideal for tight vehicle mounting locations where standard T-Series units won’t fit.
It retains the full feature set of the Mini T-Series line: Linear Super-LED® technology, support for SOLO, DUO, and TRIO modes with 36 Scan-Lock™ flash patterns, Steady-Lock™ compatibility when paired with Core® systems, and E Block™ protection to prevent moisture ingress. The electronics are conformal-coated to resist vibration, corrosion, and moisture, while hard-coated lenses ensure long-lasting durability against sand, salt, and road chemicals.
Information
- Full TRIO™ functionality — three-color control in the smallest TRIO lighthead
- Only 15.2 mm thick — ideal for tight mounting space
- Linear Super-LED® optics for superior visibility
- 36 Scan-Lock™ flash patterns across SOLO/DUO/TRIO modes
- Steady-Lock™ integration with Core® systems
- E Block™ technology for moisture and air sealing
- Conformal-coated electronics for rugged use
- Hard-coated lenses for maximum durability
- Compatible with existing T-Series sync systems
Specifications
- Voltage: 10–30 V DC
- Current draw (approx.):
– SOLO/DUO: 0.80 A peak / 0.32 A average
– TRIO: 0.30 A peak / 0.12 A average - Certifications: SAE Class 1, IP67, CA Title 13
- Dimensions: 8.48 cm (width) × 3.81 cm (height) × 1.27 cm (depth)
- Warranty: 10 years
Product information
- Art. Nr LS1052-31
- Brand Whelen
- Certifications SAE Class 1, IP67, CA Title 13
- Depth 1.27 cm
- Height 3.81 cm
- Width 8.48 cm
- IP Class IP67
- Voltage 10–30 V DC
