Hoverboard RedBase PX2/PF2 Air Suspension - Lateral

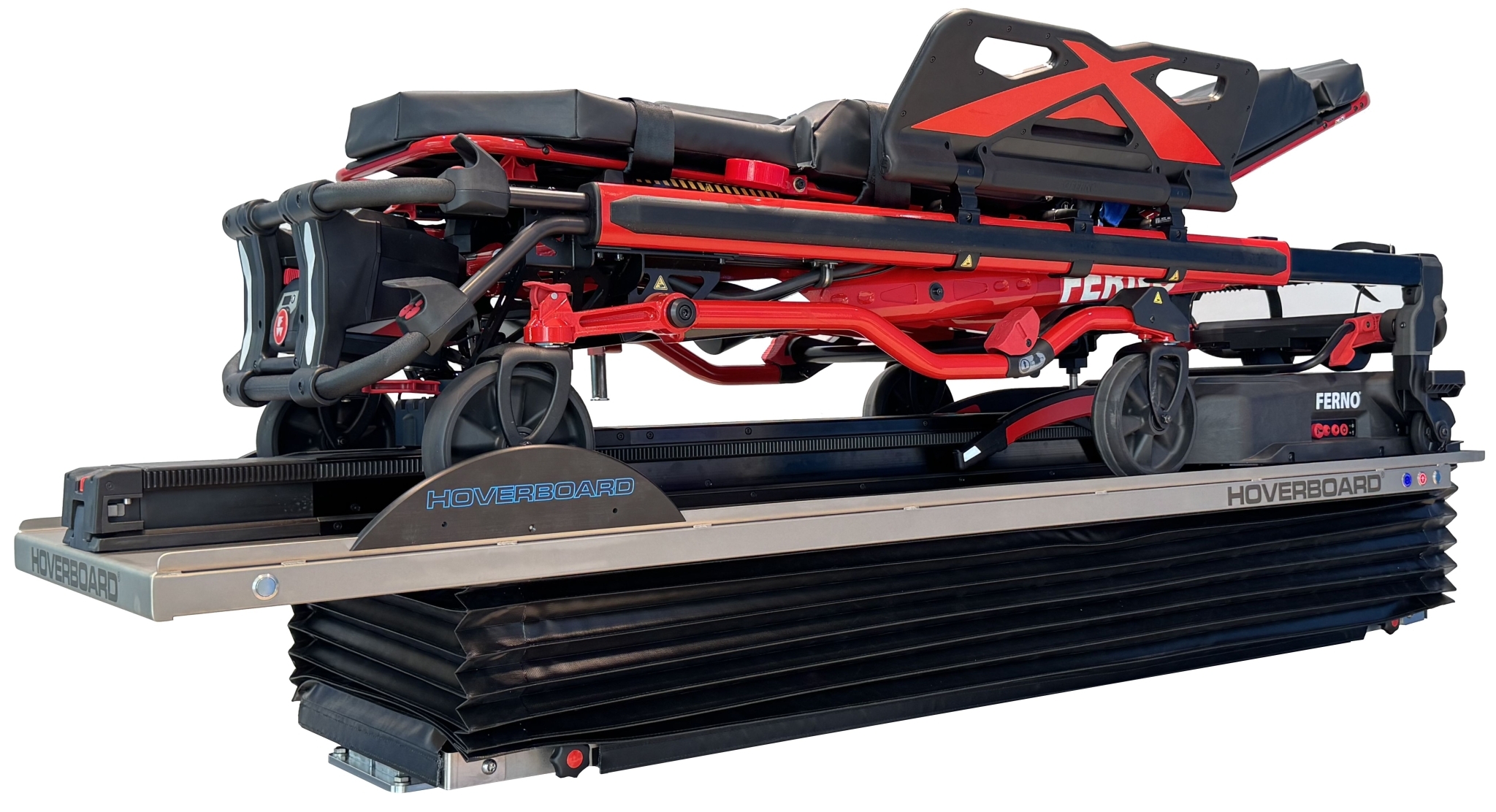

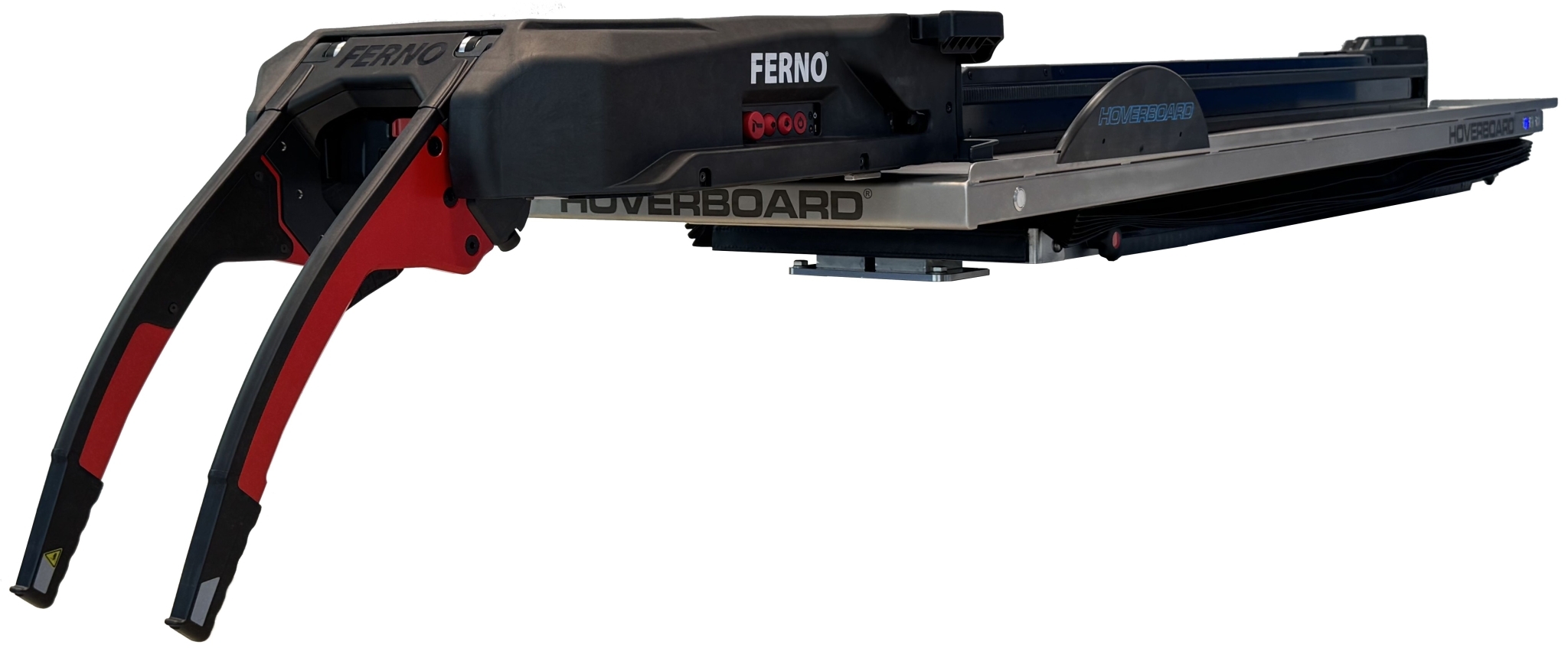

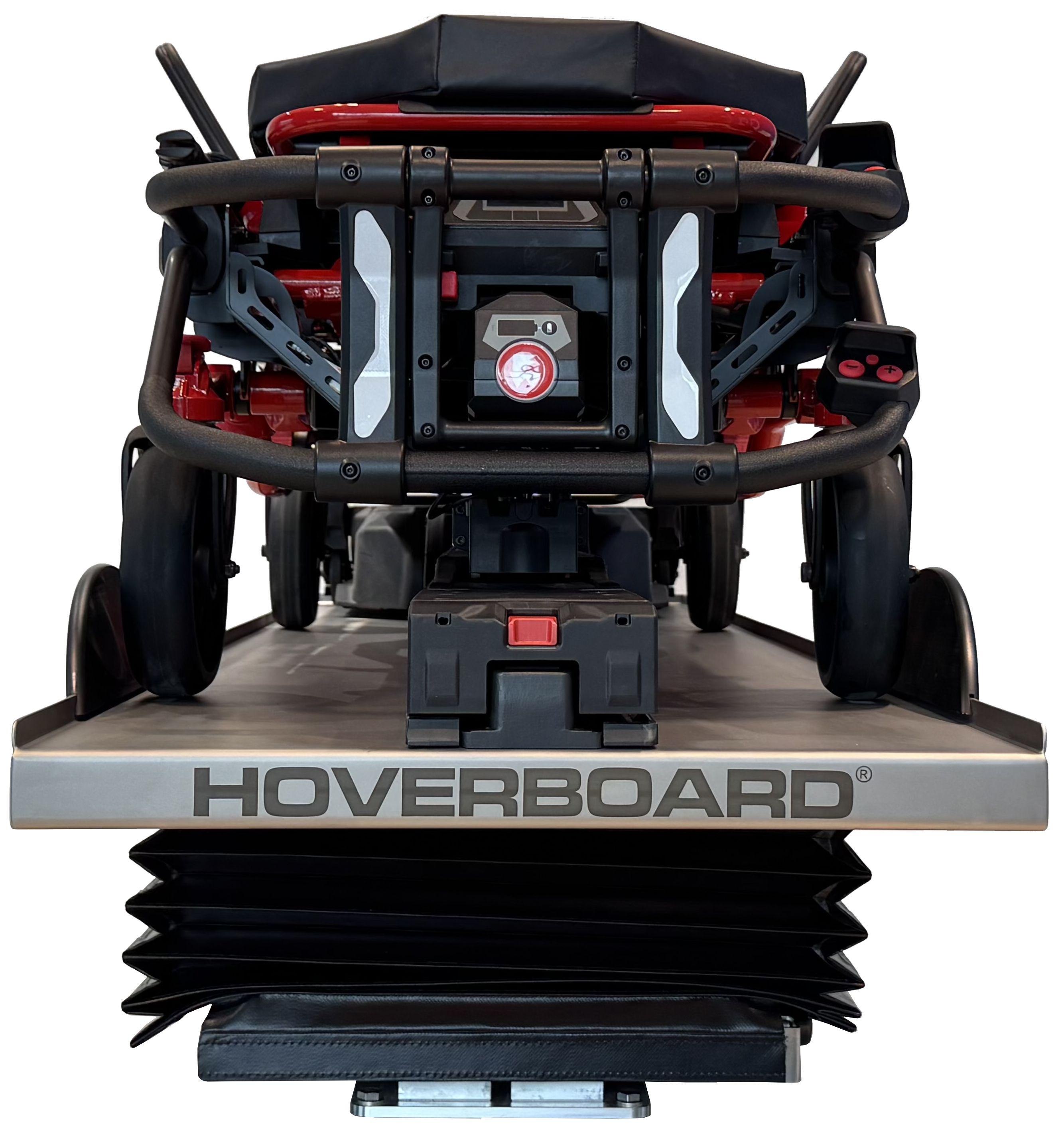

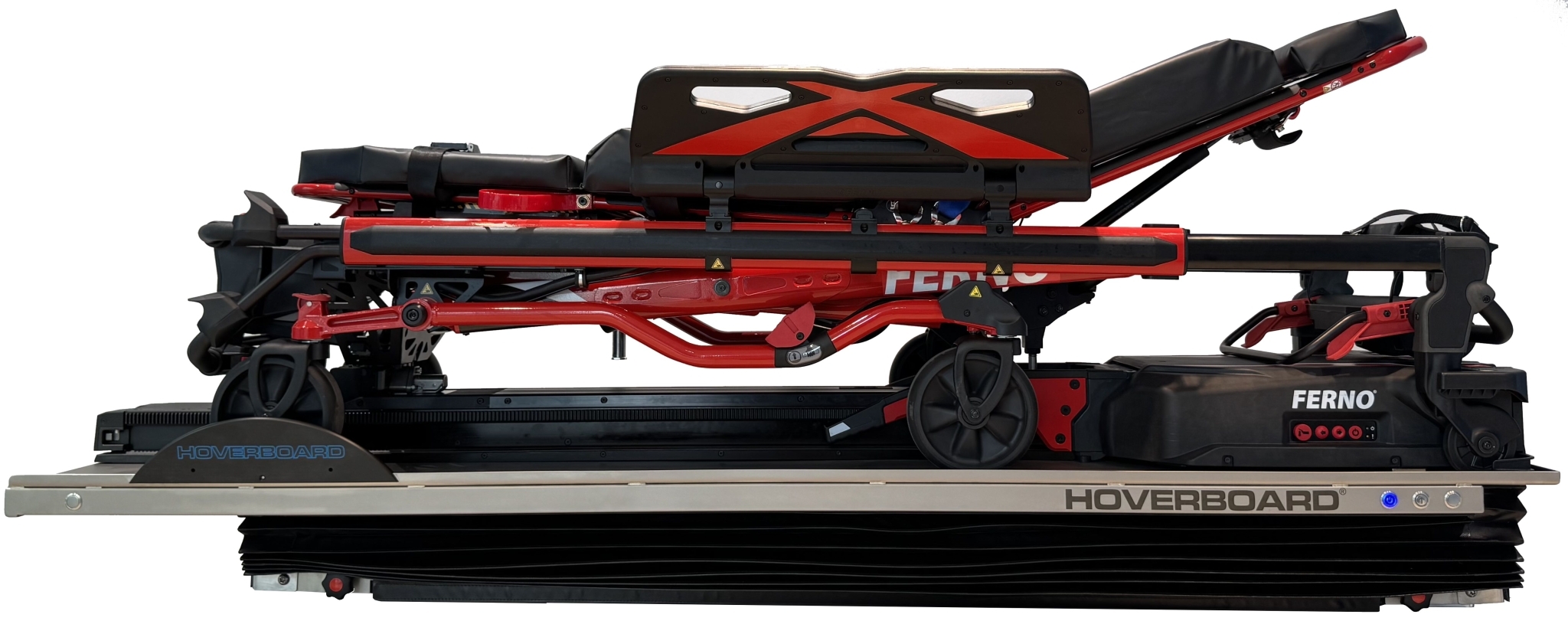

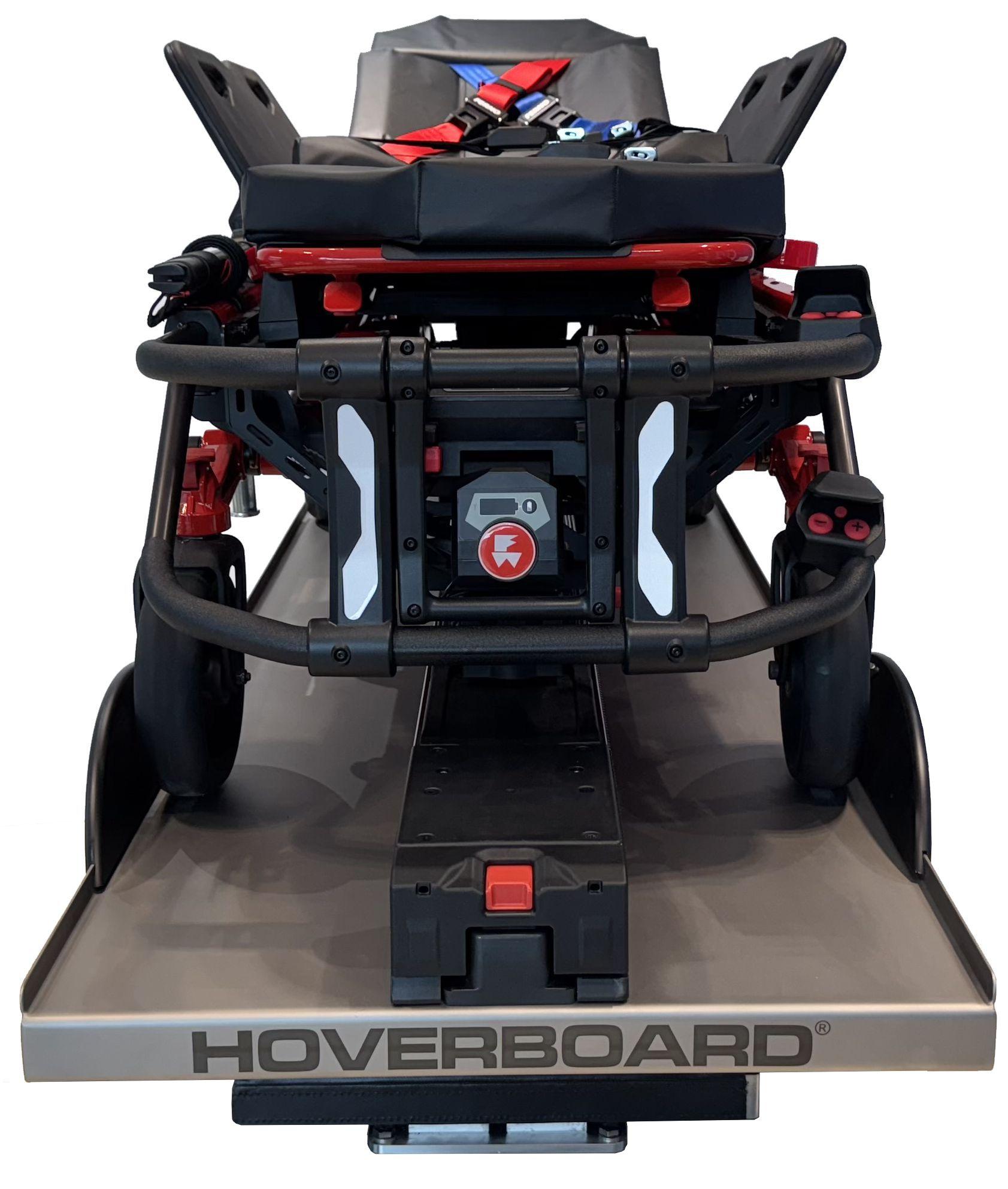

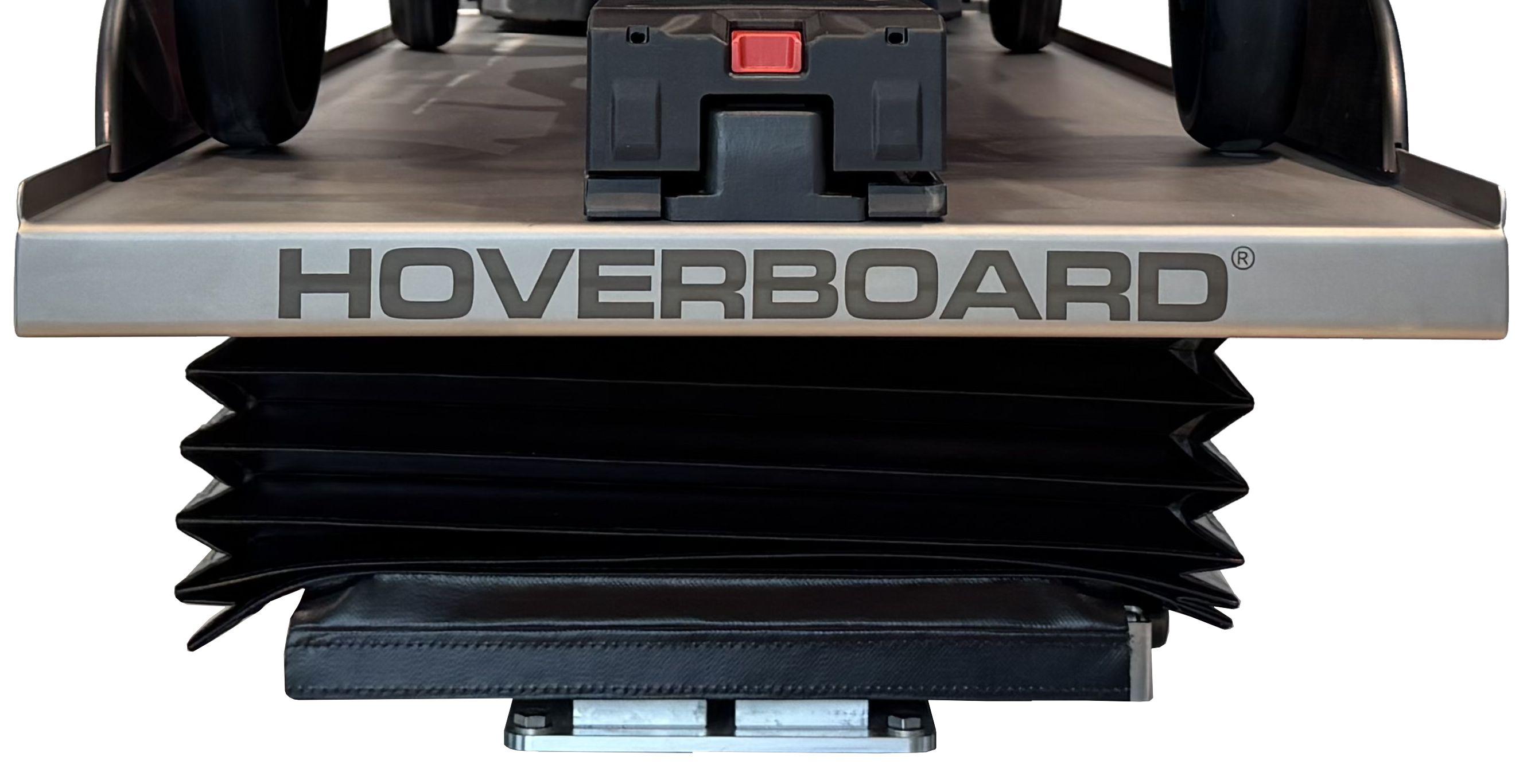

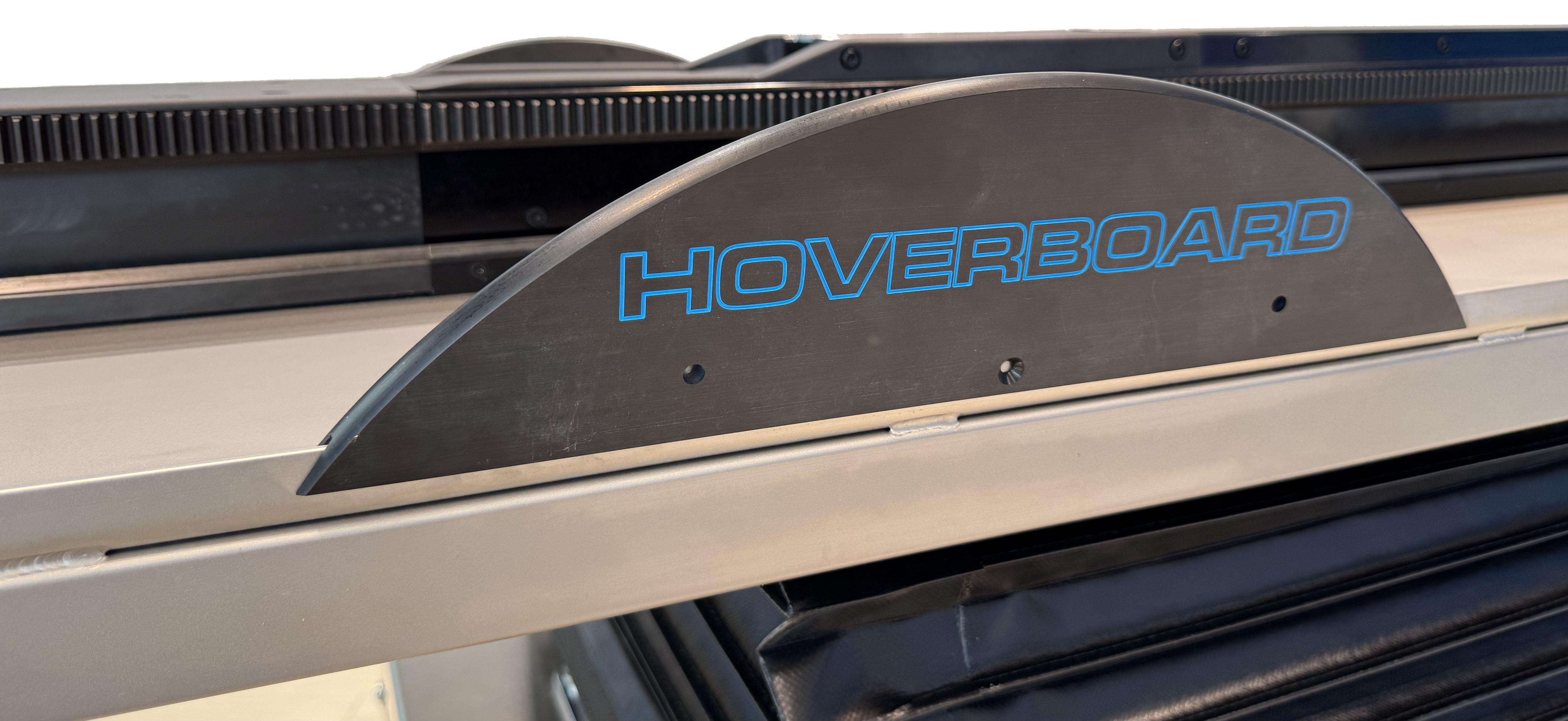

Hoverboard RedBase with Air Suspension and Lateral Movement – A Platform for Ferno PX2/PF2

Ergonomics and comfort for both patients and healthcare personnel. RedBase can absorb up to 80% of road irregularities, and never less than 50%. The automatic air suspension protects the patient without causing motion sickness through excessive rocking.

Function: Simply load the stretcher, and RedBase automatically adjusts to the patient's weight to provide optimal transport comfort.

Loading / Unloading: RedBase automatically lowers during stretcher loading and unloading.

CPR Function: At the press of a button, RedBase can be locked with the air suspension disabled in its lowest or highest position, allowing CPR to be performed.

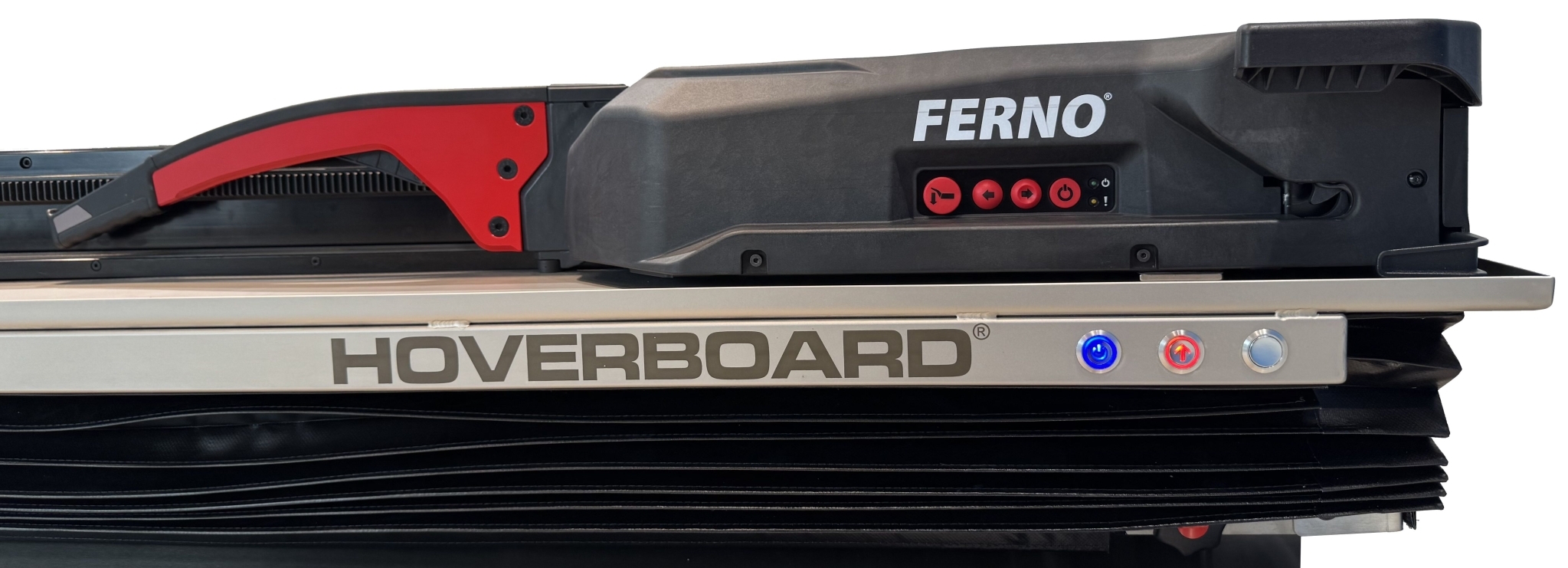

Pneumatic Lateral Movement: At the press of a button, RedBase can move sideways into up to eight different positions. As the movement is pneumatically operated, no physical force is required.

Hoverboard RedBase PX2/PF2 Air Suspension - Lateral

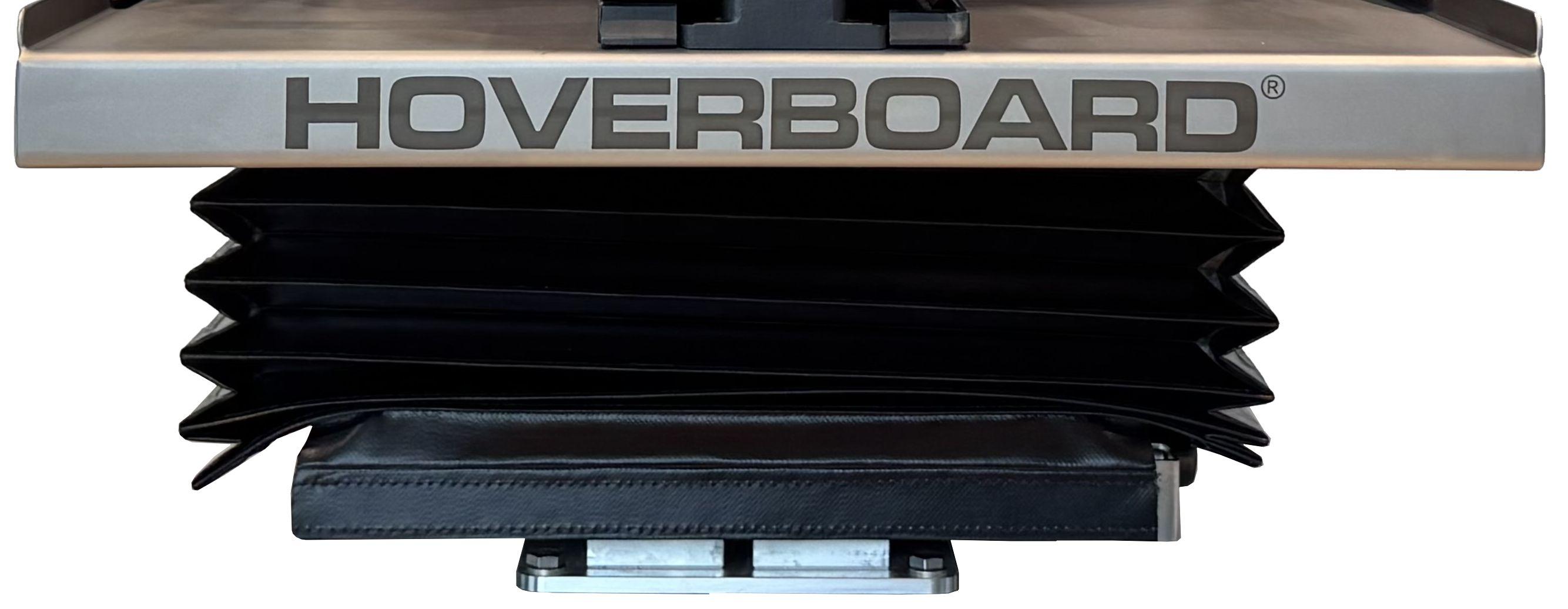

  • Air suspension combined with hydraulic shock absorbers, with 170 mm suspension travel
  • Automatic weight adjustment for patients weighing 0–320 kg
  • Automatic lowering during stretcher loading and unloading
  • Solid stainless steel construction with a scratch-resistant surface

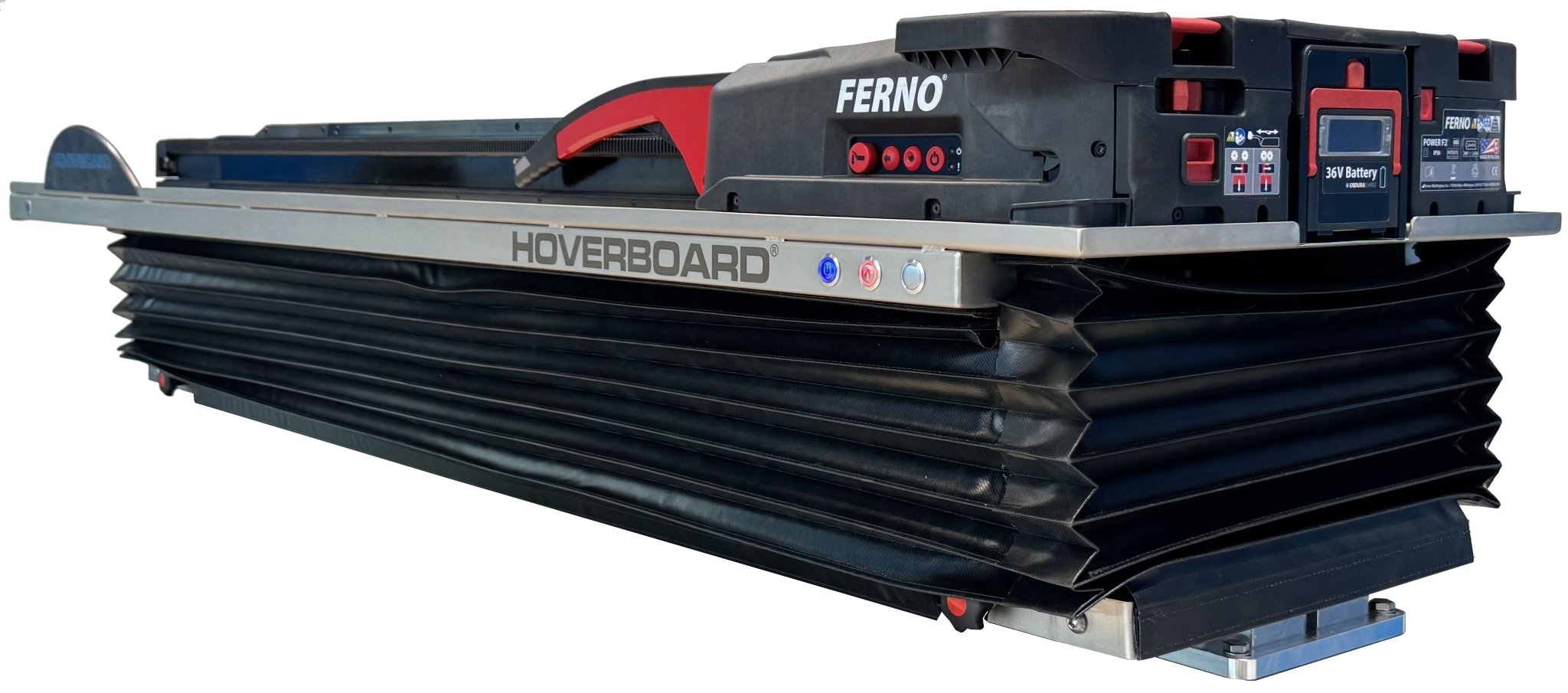

  • 12 V DC, 16 A compressor in a sealed external housing
  • Maintenance-free design, easy to clean and disinfect
  • No annual inspection required, reducing long-term maintenance costs
  • Integrated charging for Ferno PX2/PF2
Art. Nr F1025
Certifications EN 1789, EN 1865, ECE R17 and UN R10
Load Capacity 500 kg
Weight 126 kg
Height 13.5–31 cm
Length 200 cm
Width 60.6 cm
