Frontpage / Products / Rescue Equipment / Rescue Stretchers / Basket Stretcher Traverse Pinnacle Titanium Divisible

Rescue Stretchers TR114001

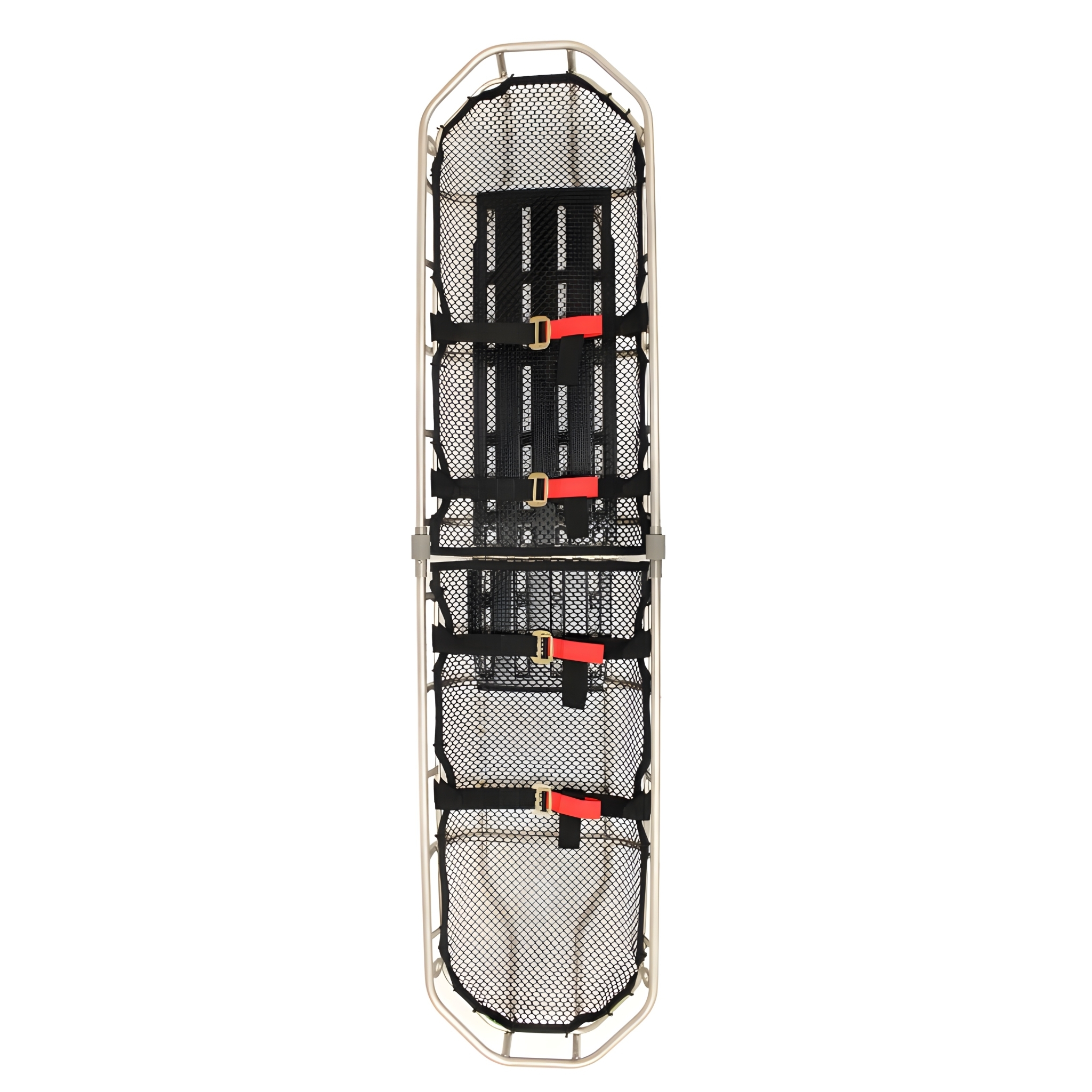

Basket Stretcher Traverse Pinnacle Titanium Divisible

The Pinnacle is an exceptionally lightweight and durable rescue stretcher crafted from titanium. Its two-piece design allows for easy transport and use in confined spaces, such as standard manholes, thanks to its slim 49.5 cm width. The Loc-Safe™ connection system ensures a secure, pin-free connection between the two parts of the stretcher. The system allows for quick visual inspections and enables assembly and disassembly in just 15 seconds. The durable polyethylene mesh base allows water and air to pass freely, enhancing performance during water-based or confined-space rescues.

The TIG-welded frame provides exceptional strength and durability while maintaining a lightweight design for ease of handling. Four StratLoad™ attachment points enable safe and efficient vertical lifts, protecting carabiners from wear during rugged operations.

The Pinnacle Titan Split Stretcher is a versatile, high-performance solution designed for challenging rescue missions, combining lightweight construction with innovative features for maximum efficiency and safety.

Ultra-lightweight titanium construction
TIG-welded frame
Supplied with four securing straps
Tested to withstand loads over 408 kg (4kN)
Patented StratLoad™ feature for standard lifting
Patented Loc-Safe™ mechanism for secure connections without pins or tubes, preventing accidental disassembly. Visual inspection enables fast and reliable connection checks during missions. Connects or disconnects in approximately 15 seconds
25.4 mm top tube
Durable HDPE (High-Density Polyethylene) mesh
Reinforced UHMW-PE (Ultra-High-Molecular-Weight Polyethylene) back plate
Rectangular model
Expected life cycle of 10 years

Art. Nr TR114001

Load Capacity 4 kN/408 kg

Weight 7,5 kg

Height 18,4 cm

Length 209,5 cm

Width 49,5 cm

DOC Declaration of Conformity IFU (FI) IFU (NO) IFU (SV) IFU (EN) IFU (DA)
