Frontpage / Products / Rescue Equipment / Rescue Stretchers / Basket Stretcher Traverse Steel Tapered

Rescue Stretchers

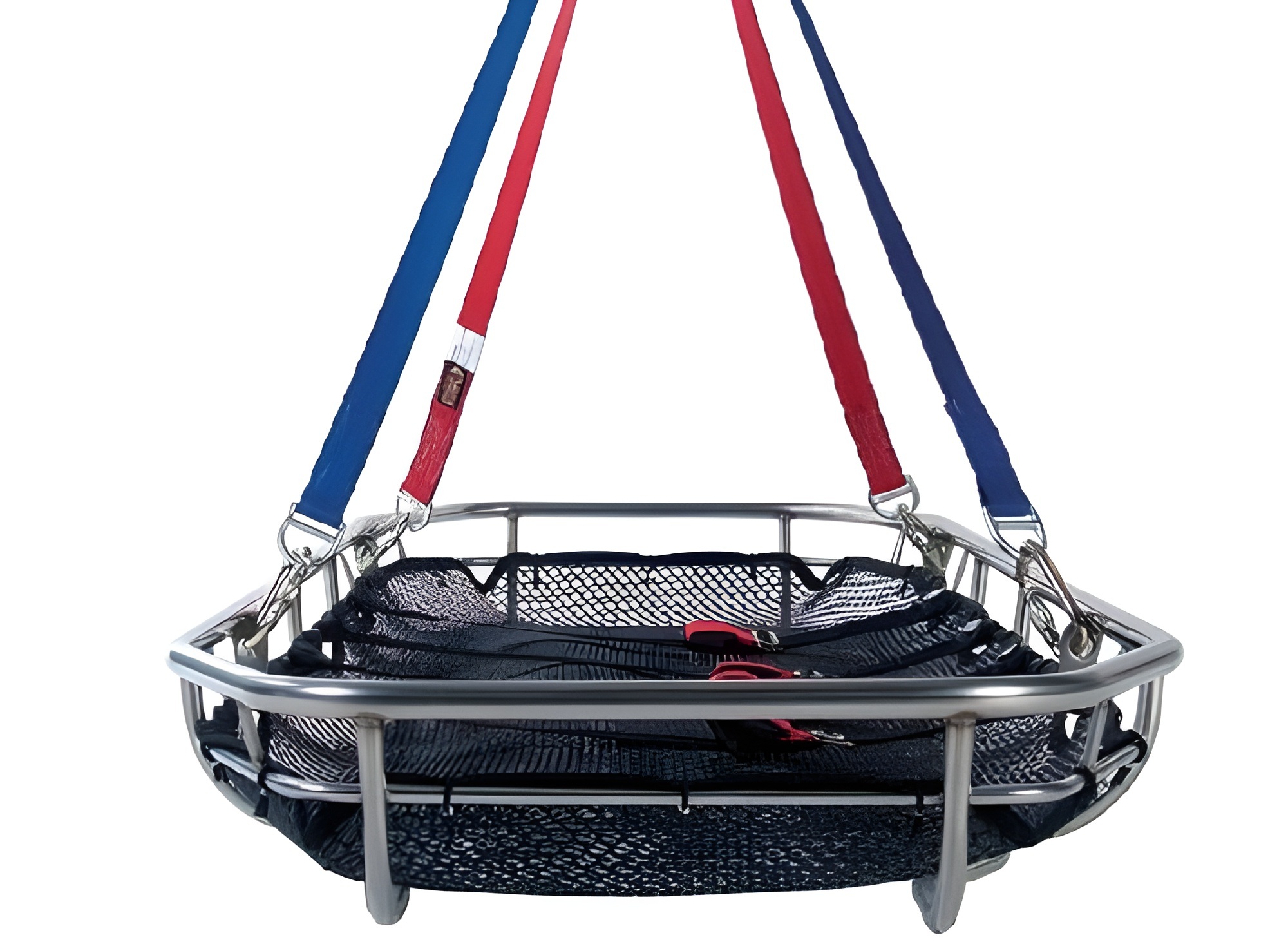

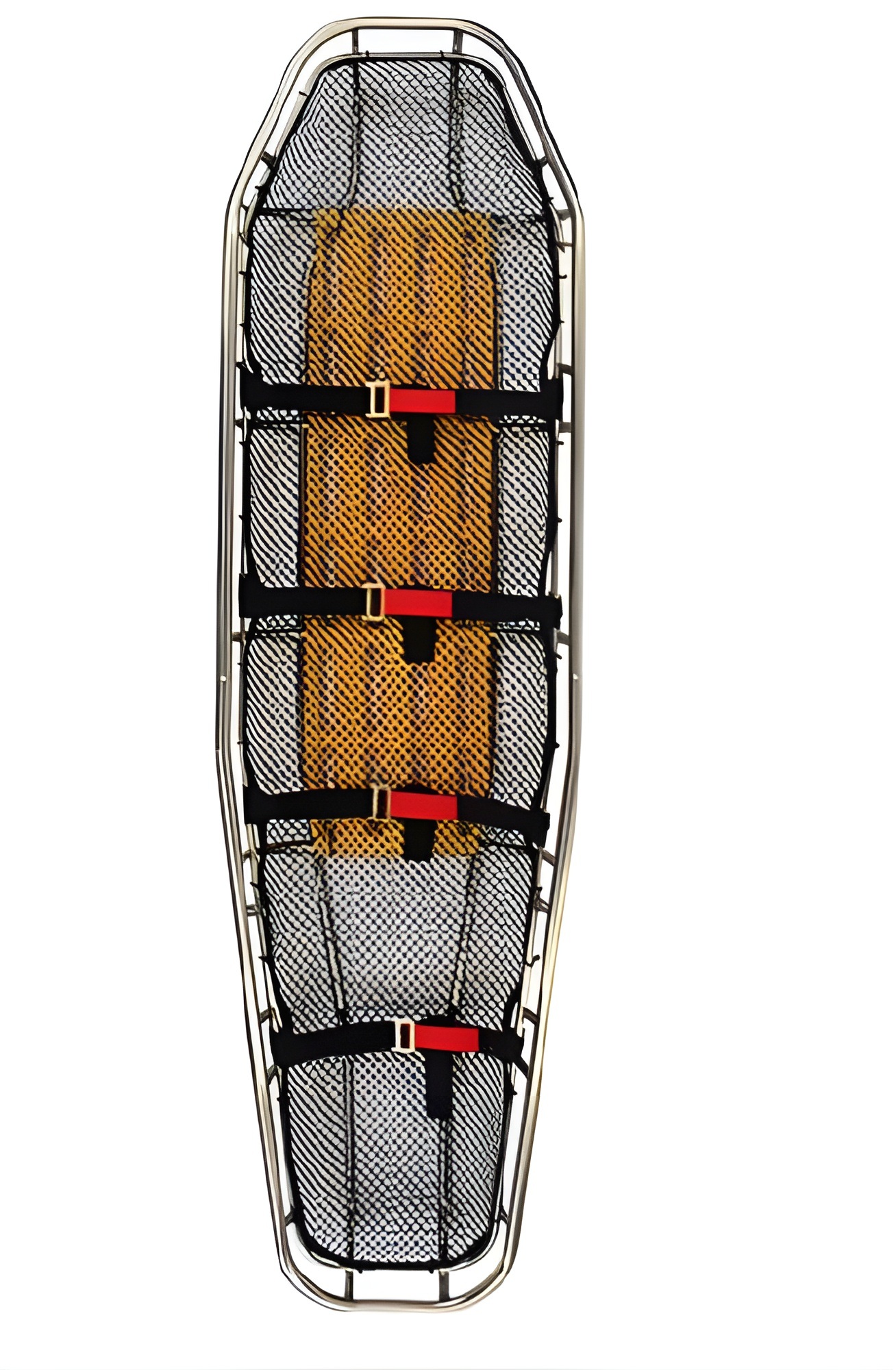

Basket Stretcher Traverse Steel Tapered

The stretcher is built with an all-stainless, TIG-welded frame construction, ensuring superior strength through its advanced geometry, materials, and construction methods. This stretcher is UL Classified and conforms to the NFPA 1983: Standard on Life Safety Rope and Equipment for Emergency Services (2012 Edition), meeting the highest safety and performance standards.

Designed for technical rescue environments, the Titan Series combines durability and functionality. Its stainless-steel construction allows it to withstand challenging conditions, while its thoughtful design provides a user-friendly platform for efficient and reliable operation. The Titan Tapered Basket Stretcher is an essential tool for rescue professionals seeking exceptional strength and performance.

Unique features include a 25.4mm (1 inch) top-tube to make it easy to hold onto relative to smaller-tube frames. It also comes with four StratLoad™ attachment points that make it quick, easy and safer to clip your Litter Bridle into. These attachment points protect the carabiner from wall and rock faces etc. The High Density Polyethylene netting allows water and air to easily pass through the patient compartment, yet the small holes keep from snagging debris as easily. The High Density Polyethylene material will not rust and potentially cause additional harm to your patient, and they are attached with shock cord so they will give-way when loads are improperly placed on it.

Titan Tapered Rescue Stretcher is completely stainless with TIG welded frame construction
Supplied with four belts
Tested to withstand static load of 1134 kg (11 kN)
Patented StratLoad™ feature as standard
Tapered design
25.4 mm top tube
Durable High Density Polyethylene (HDPE) mesh
Highly abrasion resistant UHMW-PE (Ultra-high-molecular-weight polyethylene) back plate
Compatible with all our FERNO back boards
Traverse rescue stretchers have an expected life cycle of 10 years

Art. Nr

Certifications CE 93/42/EEG (MDD), UL, NFPA, ASTM F2821-10

Load Capacity 11 kN/1136 kg

Weight 14 kg

Height 18,7 cm

Length 212 cm

Width 59,4 cm

DOC Declaration of Conformity INFO (SV) IFU (FI) IFU (DA) IFU (EN) IFU (SV) IFU (NO)
